CNC milling and CNC turning are two of the most widely used manufacturing processes in modern machine shops. Both methods rely on computer-controlled equipment to remove material from a workpiece, yet they approach the task in very different ways. Understanding these differences is important because the process selected can influence production speed, dimensional accuracy, surface finish, material waste, and total manufacturing cost.To get more news about CNC Milling vs CNC Turning, you can visit jcproto.com official website.

The simplest distinction lies in the movement of the cutting operation. In CNC milling, the cutting tool rotates while the workpiece is usually held stationary on the machine table. In CNC turning, the workpiece rotates while a stationary or controlled cutting tool removes material from its surface. This basic difference determines the shapes that each process can produce most efficiently.

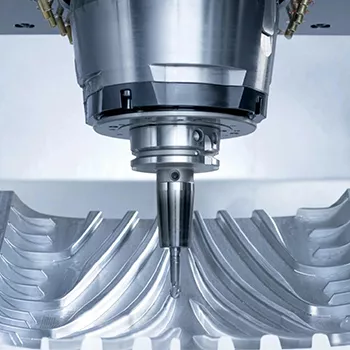

CNC milling is commonly used for parts with flat surfaces, pockets, slots, holes, contours, and complex three-dimensional features. A milling machine may operate along three, four, or five axes, depending on the equipment and the complexity of the component. Multi-axis machines can approach a workpiece from several directions, reducing the need for manual repositioning and improving consistency between features.

Typical milled components include machine brackets, molds, engine housings, medical device parts, aerospace structures, and electronic enclosures. Milling is particularly valuable when a component has an irregular shape or requires several features on different faces.

CNC turning, by comparison, is best suited to cylindrical or rotationally symmetrical components. The workpiece is secured in a chuck and rotated at high speed while the cutting tool moves along its length or across its diameter. This process can create external diameters, internal bores, grooves, threads, tapers, and shoulders.

Shafts, pins, bushings, rollers, nozzles, fittings, and threaded connectors are common examples of turned parts. In my view, turning is one of the most efficient machining methods when the geometry naturally follows a central axis. Producing the same round component entirely on a milling machine would usually require more time, more tool movement, and a more complicated setup.

Accuracy is another important point of comparison. Both milling and turning can achieve tight tolerances when suitable machines, cutting tools, fixtures, and inspection methods are used. However, turning often provides excellent concentricity because the part rotates around its own axis during machining. This makes it especially effective for components where multiple diameters must remain perfectly aligned.

Milling provides greater geometric freedom, but accuracy can be affected by workholding, tool deflection, machine rigidity, and the number of setups required. Five-axis milling can reduce these problems by completing several surfaces in one setup, although the equipment and programming are more expensive.

Surface finish also depends on process conditions. Turned parts often have fine, consistent tool marks that follow the circumference of the component. A correctly selected insert, feed rate, and spindle speed can create an excellent finish without additional polishing. Milled surfaces may show parallel or curved cutter paths, depending on the tool and machining strategy. These marks are not necessarily defects, but they may matter when appearance, sealing performance, or friction is important.

Production volume can strongly influence the final decision. CNC turning is generally faster for producing large quantities of round parts. Bar feeders, automatic tool changers, and sub-spindles allow modern turning centers to manufacture components with limited operator involvement. Some machines can even perform drilling and light milling operations, creating finished parts in a single cycle.

Milling may involve longer programming and setup times, especially for complex components. Nevertheless, it offers excellent flexibility for prototypes and low-volume production. A manufacturer can modify the digital model, update the toolpath, and produce a revised version without purchasing expensive molds or dedicated tooling.

Cost should not be judged only by the machine’s hourly rate. A turning machine may have a lower cycle time, but it is not always suitable for a part with deep pockets or multiple angled surfaces. Similarly, using a five-axis machining center for a simple shaft would be unnecessarily expensive. The most economical process is usually the one that matches the geometry with the fewest setups and the least secondary work.

Material selection rarely determines the choice by itself because both processes can machine aluminum, stainless steel, brass, titanium, engineering plastics, and many other materials. Still, material hardness, heat generation, chip control, and tool wear affect how the process must be planned.

In many real manufacturing projects, milling and turning are not competitors. They are complementary processes. A part may first be turned to establish its main diameter and then transferred to a milling machine for holes, flats, or slots. Mill-turn centers combine both operations within one machine, reducing handling time and improving alignment between features.

Ultimately, the choice between CNC milling and CNC turning should begin with part geometry. Cylindrical components usually favor turning, while complex prismatic parts favor milling. Tolerance, production quantity, surface requirements, machine availability, and budget should then be considered. From a practical manufacturing perspective, the best decision is not about choosing the more advanced process. It is about selecting the process that produces a reliable part with the simplest workflow, shortest cycle time, and most reasonable total cost.
